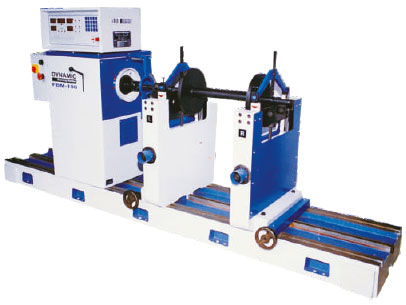

DYNAMIC BALANCING MACHINES - HORIZONTAL TYPE
( Model : FBM - M )

• Hard bearing type horizontal end driven two plane machines with microprocessor based or DSP based measuring panel.
• Suitable for balancing of different types of rotors like rotor of electrical machines, fly wheels, crankshafts, submersible pump rotors, etc.

• Measures & stores the unbalance in gms along with the angle for two selected correction planes on digital display.
• Additional bed length with or without gap bed arrangment can be provided at extra cost for extra long rotors.
• Additional center height arrangement is also possible to accommodate bigger
  diameter rotors
• Minimum achievable unbalance upto 0.5 micron shift in c.g.
• Various Models Suitable for rotors from 0.5 kg to 10,000 kg.
• Horizontal belt driven hard bearing two plane machines are also supplied for rotors weighing from 0.1 kg upto 3000 kg.
• Unbalance indication either by stroboscopic method or photo scanning method sensitivity upto 0.5 micron.
• Computerized / Electronic versions with printer facility & special machines to suit customers requirements can also be supplied.
• Machines conform to IS:13277-1992.

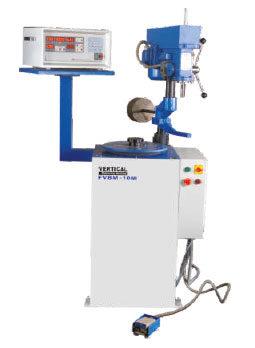

DYNAMIC BALANCING MACHINES - VERTICAL TYPE
( Model : FVBM - M )

• Vertical type hard bearing machines for single plane balancing of rotors like clutch plates, fan blades, fly wheels, magnetos, grinding wheels, impellers, pulleys, etc.
• Microprocessor based or DSP based measuring panel with auto compensation facility.

• Minimum achievable unbalance upto 0.5 micron shift in c.g.
• Various Models Suitable for rotors from 0.3 kg to 300 kg.
• Computerized / Electronic versions with printer facility & as per customers requirements can also be supplied.
• Machines conform to IS:13277-1992.

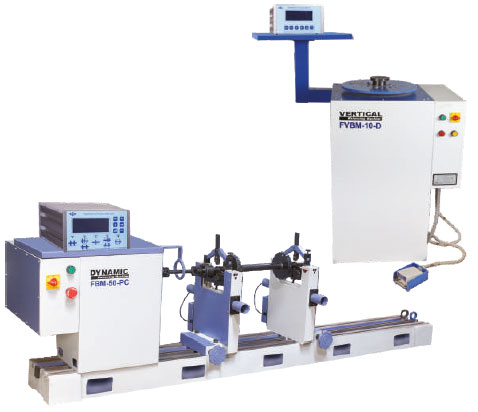

DSP BASED DYNAMIC BALANCING MACHINES
( Models : FBM - D & FVBM - D )

• All specifications mentioned under Models : FBM-M
  & FVBM-M.
• 32 bit DSP based all digital hardware in compact foot print.
• Enhanced accuracy& repeatability with fast response.
• Auto calibration.

• RS 232 / USB interface, thermal printer interface (Optional).
• Rotor programing up to 100 Nos.
• Negligible power consumption.

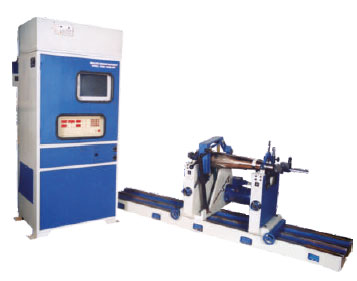

BELT DRIVEN DYNAMIC BALANCING MACHINES -
HORIZONTAL TYPE ( Model : FSBM - M )

• Horizontal, hard bearing type two plane dynamic balancing machine, with overslung type belt drive arrangement.
• Most suitable for the rotors, where end drive cannot be used or where variety of rotors is more and number of adopters required are more for end drive machine.

• Typical application are balancing of bomb shells for ordnance factories, pipes, printing machine rolls, etc.
• Machine are available from 10 kg. to 3000 kg. capacity in various models.
• Measuring Control panel is microprocessor based or DSP based, indicating amount of unbalance in gms. along with degree, by using photo scanning arrangement for generating reference signal.
• Speed range is from 300 rpm to 3000 rpm.
• Balancing accuracies achievable up to 0.5 microns for maximum rotor weight
• Machines are more suitable for repairy workshops, where variety of rotors to be balanced is more.
• Machines conform to IS:13277-1992.

STROBO-DYNAMIC BALANCING MACHINES
( Model : SSBM - 3 )

• Small & compact machine with high accuracy for balancing of small rotors like textile spindles, electric power tool armature, etc.
• Special electrodynamic pickups are used for sensing minute vibration due to imbalance in the rotor.

• Machine is provided with electronic measuring control panel with digital panel meter for amount indication & xenon flash tube with brilliant white light for locating position of unbalance.
• Machine is very sensitive & accuracies of the order of 0.2 micron.
• Suitable for rotors from 0.1 kg to 3 kg.
• Balancing speed range is 800 to 3000 rpm.

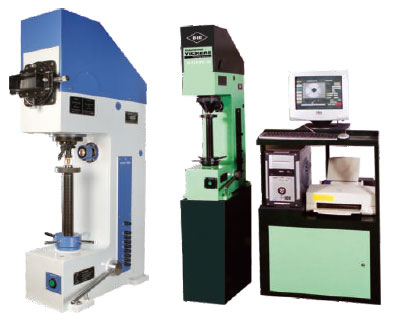

VICKERS CUM BRINELL HARDNESS TESTING MACHINES
( Model : BV )

• Suitable for finding out Vickers / Brinell hardness of metals from soft to very hard.
• Push button control for load selection.
• Large size table for wide range of springs with motorized rapid adjustment of test height.
• Optical Magnifications - 35X, 70X & 140X available.

• A precision Diamond Indentor (136° Pyramid) is used to make sharp indentations on the specimens / samples.
• Maximum Test height x Throat : 250 x 150 mm.
• Load accuracy well within ± 1% of nominal load value. Machine conform to IS :1754.
• Computerized model is available .Computerized model has built in CCD and suitable advanced software. Hardness will be displayed on computer monitor automatically. Results printout can be taken.

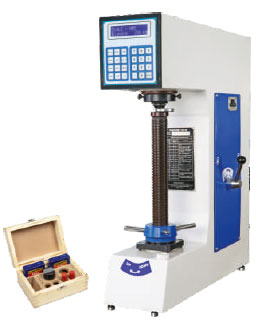

DIGITAL ROCKWELL / ROCKWELL CUM BRINELL HARDNESS TESTING MACHINES ( Models : TRS-DN, TRB-DN, TRB-250-DN & TRS-DN-P )

• These machines are designed for measuring hardness of metals and alloys of all kinds, hard or soft, whether round, flat or irregular in shapes.
• Semi - Automatic, motorized, digital, microprocessor based panel. We can get hardness value in digital version.

• Easy to read, large size LCD display.
• Three modes of operation viz. Motorized automatic mode, Semi automatic mode & Manual mode.
• Automatic weight selection by thumb wheel.
• Indenter is guided in linear bearings facilitates to test small diameter jobs.
• Test height x Throat is 290 x 133 mm.
• Centronics parallel port for connecting dot matrix printer.
• Serial Interface (RS-232 Port) is provided for connecting it to Computer.
• Standard Software CD is provided which consists of Serial Number, Hardness values & Limits.
• Least count for Rockwell scale is 0.1 HR.
• For Rockwell cum Brinell Hardness Testing Machine, additional Brinell loads in addition to Rockwell loads & Brinell Microscope of 25X magnification are provided.
• Machines strictly conform to IS:1586-2000, BSEN-ISO-6508-2, ASTM-E-18 for Rockwell tests and IS:2281-2005, BS -240, ASTM-E-10 for Brinell tests.

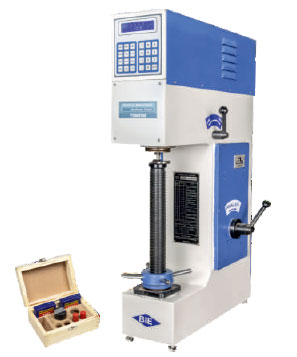

DIGITAL ROCKWELL CUM ROCKWELL SUPERFICIAL HARDNESS TESTING MACHINES ( Model : TSM-DM )

• This machine is designed for measuring hardness of metals and alloys of all kinds, hard or soft, whether round, flat or irregular in shapes.
• Semi - Automatic, motorized, digital, microprocessor based panel. We can get hardness value in digital version.
• Easy to read, large size LCD display.

• Three modes of operation viz. Motorized automatic mode, Semi automatic
  mode & Manual mode.
• Automatic weight selection by thumb wheel.
• Indenter is guided in linear bearings facilitates to test small diameter jobs.
• Test height x Throat is 290 x 148 mm.
• Centronics parallel port for connecting dot matrix printer.
• Serial Interface (RS-232 Port) is provided for connecting it to Computer.
• Standard Software CD is provided which consists of Serial Number, Hardness values & Limits.
• Least count for Rockwell scale is 0.1 HR & Rockwell Superficial scale is 0.2 HR.
• Machines strictly conform to IS:1586-2000, BSEN-ISO-6508-2, ASTM-E-18 for Rockwell tests and 1586-2000 & ASTM-E-18 for Rockwell superficial tests.
