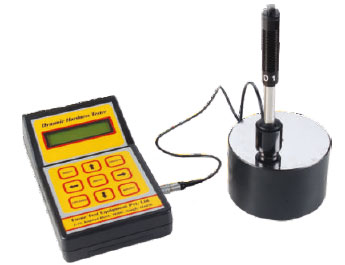

PORTABLE DYNAMIC HARDNESS TESTING MACHINES
( Model : DHT-6 )

• Sleek & handy design, comes in a slim briefcase, for carrying the machine.
• Mainly used to check hardness in confined spaces, on large & heavy components, permanently installed parts with low test expenditure.

• The machine has built in conversion facility for given material to convert 'D' value to Vickers (HV), Rockwell (HRB,HRC), Brinell (HB), UTS scales which can be selected by pressing arrow keys
• The model operates on two numbers of pencil cells.
• 30 hardness scales for different probes selectable by feather touch keys.
• Alpha numeric display - 16 characters x 2 lines LCD with improved electronics, micro controller circuity & user friendly software. Display indicates selected material & scale combination & hardness value.
• Five numbers of probes D, G, SH, EX & C can be given in different combinations..
• Facility to connect dot matrix printer through centronics parallel port.
• Upto 999 readings can be stored in memory of the machine for printing purpose.
• Serial interface is possible with RS 232 port at an additional cost.
• Automatic calibration facility of probe is available through keyboard.
• Extra (Optional) Accessories such as Standard test blocks, support rings, printer, serial interface, different types of probes are available.

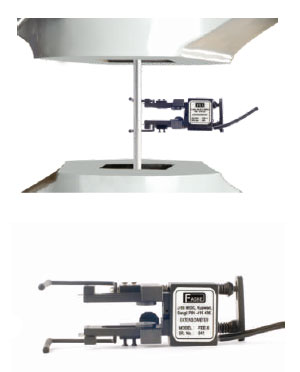

ELECTRONIC EXTENSOMETERS
( Model : FEE-5 )

• This instrument is to be used on Tensile or Universal testing machines to find out Proof stress & Young's modulus values.
• In case of many brittle materials such as high carbon steels, alloy steels,
  light aluminium & magnesium alloys, it is difficult to get yield values. For such materials stress corresponding to a certain allowable amount of plastic deformation is termed as proof stress say 0.1% or 0.2% proof stress.

• The measuring range is upto 5mm & resolution is 0.001mm
• Standard two fixed gauge lengths of 25 & 50 mm is provided. Different sizes gauge lengths can also be given at an additional cost.
• If this extensometer is ordered with a computerized UTM, then a special menu driven application software is provided, which accepts load & extension values & evaluates proof stress values.
• The measurement accuracy satisfies all requirements of Class-1 as per IS:12872-1990.

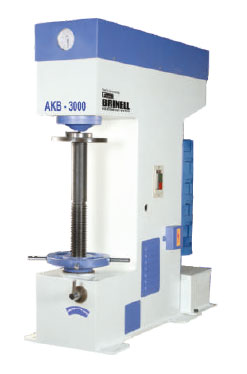

BRINELL HARDNESS TESTING MACHINES
( Model : AKB-3000 )

• This machine is designed for Brinell hardness measurement on steel & other ferrous materials & also on non-ferrous materials like Brass, Bronze, Aluminium, etc. The material can be cast, forged or rolled & the shape can be flat, round or irregular.

• This machine is specially used in production testing. Its stability& unique design of a floating fulcrum lever system ensures high accuracy & dependability.
• The load application system is of dead weight type combined with mechanical lever system. The supporting hydraulic system is for initial lifting of load before each test & damping the load application system for smooth application of load.
• Test loads from 500 to 3000 kgf in steps of 250 kgf.
• Test loads from 500 to 3000 kgf in steps of 250 kgf.
• Test height x Throat is 380 x 200 mm.
• Indentation measurement by Brinell Microscope of 25X Magnification.
• Special Test fixtures for odd jobs / production testing can be supplied (Optional).
• Computerized Brinell impression measurement system is available (Optional).
• Manual / Optical / Computerised type Brinell Hardness testing machines are also available.

• Accuracy conform to IS:2281-2005 & BS:240.

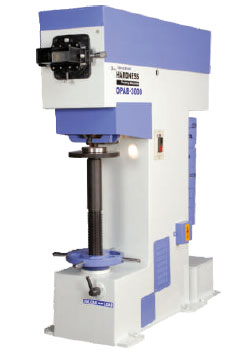

OPTICAL BRINELL HARDNESS TESTING MACHINES
( Model : OPAB-3000 )

• This machine is designed for Brinell hardness measurement onsteel & other ferrous material & also on non-ferrous material like Brass, Bronze, Aluminum etc. The material can be cast, forged or rolled & the shape can be flat, round or irregular.
• This machine is a modified version of AKB-3000 which is provided with an inbuilt optical system of 14X magnification.

• An Automatic indenter index system is provided which tilts the indenter after the impression and the magnified image is visible on the screen for measurement with a 0.01 mm least count (Direct indentation measurement system).
• Thus this machine gives fast and accurate results with less operator fatigue.
• This model is mainly useful for production testing in Auto Shops, Foundries, Forge shops and Heat treatment units, etc. Its stability and unique design of a floating fulcrum lever system ensure high accuracy & dependability.
• The load application system is of dead weight type combined with mechanical lever system. The supporting hydraulic system is for initial lifting of load before each test and damping the load application system for smooth application of load.
• Test loads from 500 to 3000 kgf in steps of 250kgf.
• Machine Test height x Throat is 380 x 200 mm.
• Special test fixtures for odd jobs / production testing can be supplied (Optional).
• Computerized Brinell Impression measurement system is available (Optional).
• Manual / Computerized type Brinell hardness testing machines are also available.
• Accuracy conform to IS:2281-2005 & BS:240.

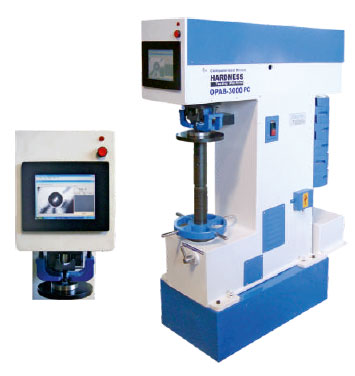

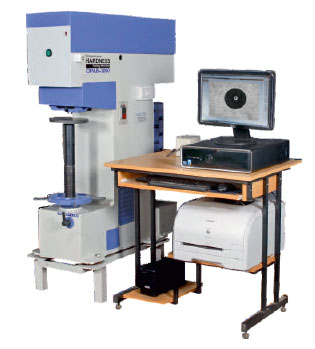

COMPUTERISED OPTICAL BRINELL HARDNESS TESTING MACHINES ( Model : OPAB-3000-PC )

• This machine is designed for Brinell hardness measurement on steel & other ferrous materials & also on non-ferrous materials.
• This machine is a modified version of AKB-3000 & OPAB-3000, which is provided with an inbuilt optical system (CCD) of 16X.

• An Automatic indenter index system is provided which tilts the indenter after the impression and on removal of load. The optics will transfer the image of indentation to CCD. The image is further digitalized & processed by PC for measurement. The diameter of the image can be measured automatically / manually to give Brinell hardness value.
• Thus this machine gives fast and accurate results with less operator fatigue
• This machine saves a lot of cycle time, improved accuracy of measurement and gives fast and accurate results with less operator fatigue.
• This model is mainly useful for production testing in Auto Shops, Foundries, Forge shops and Heat treatment units, etc. Its stability and unique design of a floating fulcrum lever system ensure high accuracy & dependability.
• Test loads from 500 to 3000 kgf in steps of 250kgf.
• Machine Test height x Throat is 380 x 200 mm.
• Fully computerized system for indentation measurement and display.
• Windows based software system.
• Accurate measurement of Brinell hardness through matched Optics, CCD Camera, Hardware & Software using advanced image processing technology.
• Two modes of measurement - Manual & Auto.
• In Auto mode the image is scanned for measurement & hardness is displayed automatically.
• Verification facility is provided for clear indication of measured impression by encircling the same.
• Windowing facility is provided which encircles the blurt images for better accuracies.
• Macro & Micro adjustment facilities are provided in manual mode for fast & accurate encircling of the image to be measured.
• Batch testing facility is provided.
• Statistical Analysis report can be generated.
• Calibration mode is provided with password protection.
• Special test fixtures for odd jobs / production testing can be supplied (Optional).
• Accuracy conform to IS:2281-2005 & BS:240.

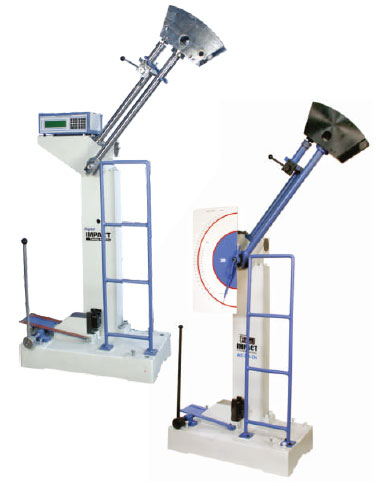

PENDULUM IMPACT TESTING MACHINES
( Models : AIT-300-N, AIT-300-EN & AIT-300-D )

• Suitable for Charpy & Izod Impact Tests on various materials. Works on Pendulum principle.
• Rigid designs of machine frame & other parts assure minimum energy absorption during fracture which results in improved test accuracies.

• The highly stressed & wearing parts like support blocks & strikers are of special alloy steels duly heat treated.
• Direct indication of Impact energy absorbed by specimen on large dial for Models : AIT-300-N, AIT-300-EN & on digital panel display for Model : AIT-300-D.
• Safety guard for the operator is provided.
• Initial potential energy for Charpy is 300 Joules & for Izod is 170 Joules with a L.C. of 2 Joules (for Analogue models) & resolution of 0.5 Joules (for Digital model).
• Pendulum drop angle for Charpy is 140° & for Izod is 90° .
• Gauges, Tongs, Sub-zero bath, Templates, U & V notch milling cutters are available (Optional).
• Accuracy conform to IS:3766-2003, IS:1598-1977, IS:1757-1999, IS:1499-2003, BS:131-Part- I, II, III, IV & BSEN-10045-1993 (for Charpy).

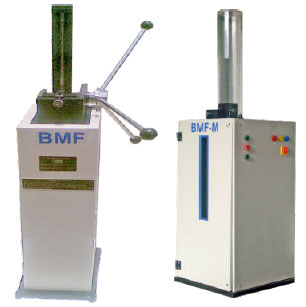

MANUAL & MOTORISED -
CHARPY & IZOD NOTCH BROACHING MACHINES
( Models : BMF & BMF-M )

• Robustly constructed machine cuts the notches (V or U) very accurately by means of specially designed multi-toothed broach, which is drawn across the specimen by self-push of rotating hand wheel.

• This machine is a really cost effective solution for cutting Impact notches. Accurately cuts the desired notches as per respective standard in just a single pass within few seconds.
• A simple hand-vice for holding the specimen.
• The tooling includes the adjusters and end stops necessary to ensure notch-depth and position are correctly set.
• Motorized Notch Broaching Machines are also available.

DIGITAL BRINELL MICROSCOPES
( Model : BIMS )

• This is an accessory of Brinell hardness tester.
• It can be connected to computer to get display of impression on computer.
• The special software is provided with it can calculate the Brinell hardness value automatically.
• Accuracy strictly conform to IS:2281.
