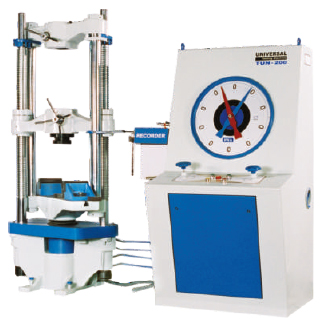

ANALOGUE - UNIVERSAL TESTING MACHINES
( Model : TUN )

• Variety of tests like Tension, Compression, Transverse, etc are conducted.
• Continuous roll autographic “Load Vs Elongation” recorder.
• Suitable for testing a wide range of metallic materials.

• Extra (Optional) Accessories such as - Extensometer, Pace (load) rate control, Load-Stabilizer, Attachment for - Brinell test, Tensile test for shouldered & threaded, Single & Double shear test, Bolts-Nuts & Washer test, Rope test, Flat Belt test, Bend-Rebend test, 180° Bend test, Pull-Out test, Chain testing, etc are available.
• Various Models - Capacities from 100 kN to 2000 kN are available.
• Loading accuracy well within ± 1%, conform to IS:1828 / BS:1610.

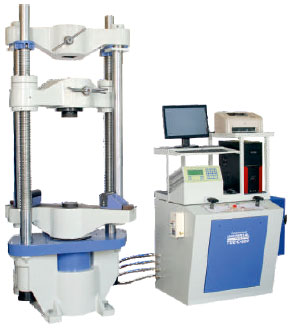

COMPUTERISED - UNIVERSAL TESTING MACHINES
( Model : TUE-C )

• Automatic Data capture, storage & graphic display.
• Recording, storage & retrieval of results & details.
• On line display of load & extension.
• Fully automatic, on screen calculations based on the delivered data.
• Out put to digital printer of test data, test results & graphs.

• Auto detection of over load, over travel & specimen break, on
  detection of the above conditions, the machine is automatically
  switched off.
• Load resolution : 0.01% of machine capacity for entire range.
• Accurate and Users friendly software & all other facilities mentioned
  under Model : TUN.

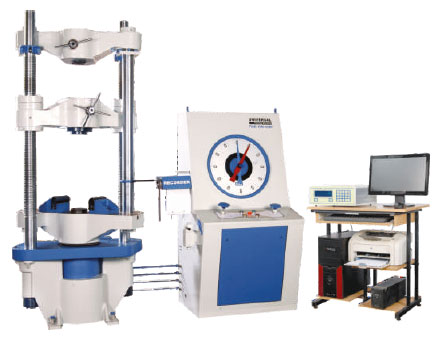

ANALOGUE CUM COMPUTERISED - UNIVERSAL TESTING MACHINES ( Model : TUE-CN )

• The DC valve is provided which directs oil flow
  either to analogue or computerized control panel.
  One can use one system at a time.
• Both Analogue & Computerized control panels are
  provided.
• Various Models - Capacities from 100kN to 2000kN
  are available.

SERVO COMPUTERIZED - UNIVERSAL TESTING MACHINES
(with Load & Strain rate controls) ( Model : TUE-C-SERVO )

• Electronically controlled sophisticated imported pressure and flow
  control valves with dedicated controller and are controlled in
  closed loop with PID looping for getting desired load rate and strain rate.
• Variable load rates and strain rates can be selected through computer.

• DAS Panel is equipped with 32 bit Micro-Controller
• Various control modes are available.
• DAS Panel can be connected to any new generation PC or Laptop
  with USB Port
• Load accuracy as high as ± 1% from 2% to 100% of machine capacity
• Resolution of load upto ± 5,00,000 counts (Optional) can be supplied.
• Accurate and Users friendly software and all other facilities mentioned
  under Model : TUE-C.
• Various Models - Capacities from 100 kN to 2000 kN are available.
• Machines strictly conform to IS:1828 & BS:1610 standards.

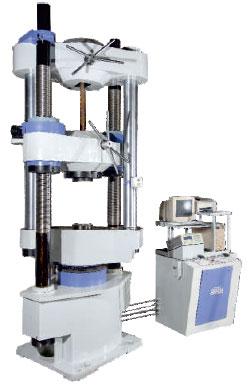

COMPUTERIZED & ANALOGUE VERSIONS, 2000 kN CAPACITY, UNIVERSAL TESTING MACHINES
( Models : TUE-C-2000 kN & TUN-2000 kN )

• This is a big size machine i.e. 2000 kN (200 Tons) capacity, with neck breaking height.
• Machine performance is excellent and even bars of size upto dia 50 or 60 mm are comfortably tested without jerks and shakes.

• Middle crosshead speed is 300 mm/min.
• Additional middle crosshead control push buttons on machine columns to facilitate ease of machine operation.
• Increased length and rigidity of jaws and inserts.
• Accuracy and other features as mentioned under Models : TUN & TUE-C.
• Machines strictly conform to IS:1828 & BS:1610 standards.

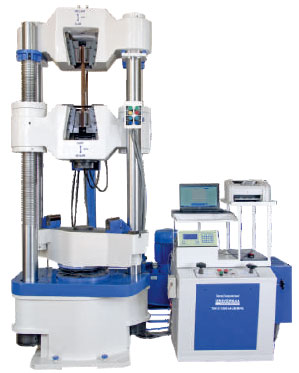

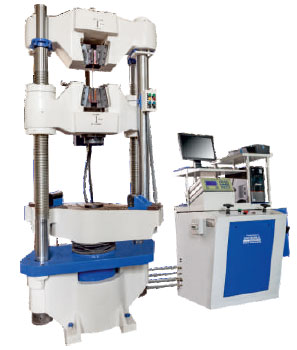

SERVO COMPUTERIZED - UNIVERSAL TESTING MACHINES
(with Load & Strain rate controls, with front open crossheads and hydraulic grips) ( Model : TUF-C-SERVO )

• Machine is Servo controlled i.e. with Load rate and Strain rate controls.
• Machine is electronically controlled with sophisticated imported pressure and flow control valves along with their dedicated controller are used and they are controlled in closed lop with PID looping.

• This machine is designed with Front end opening crosshead and hydraulic gripping.
• Accuracy of ± 0.5% of indicated load valve is guaranteed from 2% to 100% of
  machine capacity.
• All other specifications are as mentioned under Model : TUE-C-(SERVO).
• Various Models - Capacities from 400 kN to 2000 kN are available.
• Machines strictly conform to IS:1828 & BS:1610 standards.

SERVO COMPUTERIZED - UNIVERSAL TESTING MACHINES, 1200 kN CAPACITY (with Load & Strain rate controls, with front open crossheads and hydraulic grips)
( Model : TUF-C-1200 kN-SERVO )

• Machine is 1200 kN (120 Tons) capacity, Servo controlled i.e. with Load rate and Strain rate controls.
• Machine is electronically controlled with sophisticated imported pressure and flow control valves along with their dedicated controller are used and they are controlled in closed lop with PID looping.

• This machine is designed with Front end opening crosshead and hydraulic gripping.
• The design is more suitable for easy fixing of flat or round samples, testing of round & TMT bars upto dia. 42 mm with less jerks during breaking of samples.
• Accuracy of ± 0.5% of indicated load valve is guaranteed from 2% to 100% of machine capacity.
• All other specifications are as mentioned under Model : TUE-C-(SERVO).
• Machines strictly conform to IS:1828 & BS:1610 standards.

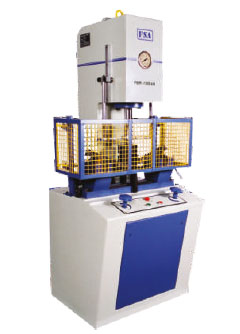

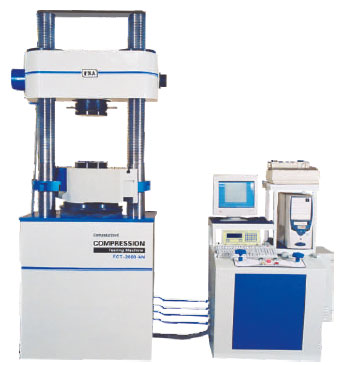

COMPUTERISED & ANALOGUE VERSIONS - COMPRESSION TESTING MACHINES ( Model : FCT, FCT-E & FCT-EC )

• Suitable for testing a wide range of materials.
• Wide range of standard & special (Optional) Accessories such as - Load-Stabilizer, Attachments for Brinell test, etc are available.
• Various Models - Capacities from 100 kN to 3000 kN are available.

• Analogue, Digital & Computerized versions are available.
• Loading accuracy well within ±1%, conform to IS:1828 / BS:1610.

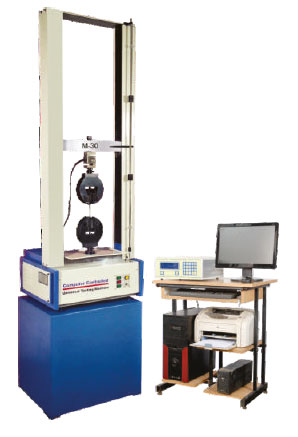

COMPUTER CONTROLLED, BALL-SCREW DRIVEN
UNIVERSAL TESTING MACHINES ( Model : M SERIES )

• Variety of tests like Tension, Compression, Tranverse, Peel off, Bend, Shear, etc are conducted.
• Suitable for testing a wide range of materials like rubber, plastic, ferrous metals, non-ferrous metals, etc of various forms like round, flat, thread, wire, dumb-bell, fabric, belt, strip, rope, etc.

• AC Servo motor for crosshead control with infinitely variable speed drive.
• Computerized crosshead control. Load measurement by load cell.
• Over Load & Over travel safety
• Latest Windows based, Users friendly, Accurate, Menu driven software.
• On line display of Load, Elongation & Graph.
• Tare load & reset elongation facilities available.
• Built-in facility for printing of test results and the graph.
• Selectable units like N, kN, kgf, lbf, inch, mm, etc.
• Fully automatic on screen calculations like UTS, YS, Proof stress, etc.
• Large storage space for storing test data of upto 50,000 tests.
• Electronic Extensometer (Optional) is available for proof stress evaluation.
• Standard load resolution is with 20,000 counts. Finer resolution (Optional) with 50,000 to 5,00,000 counts can also be offered at extra cost.
• Wide range of grips & accessories to suit different materials & tests.
• Various Models - Capacities from 1 kN to 100 kN are available.
• Loading accuracy well within ±1%, conform to IS:1828 / BS:1610.

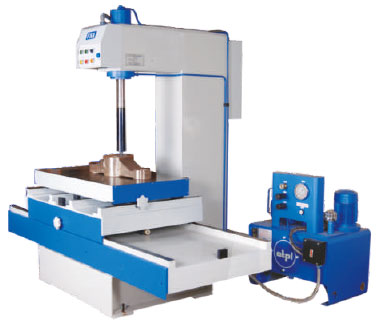

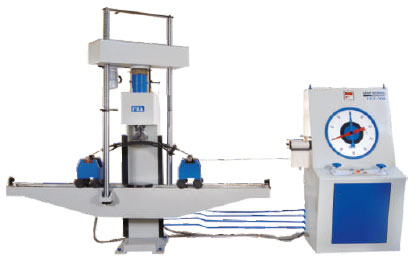

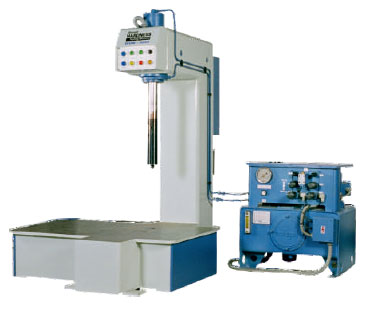

LEAF SPRING TESTING MACHINES ( Model : FST, FST-E, FST-EC )

• The machine is used to test wide range of Leaf / Laminated
  Springs for load rate as per IS:1135-1984.
• Measuring ranges available with auto load selection facility.
• Large size table for wide range of springs with motorized rapid adjustment of test height.
• Standard autographic recorder.

• Over load & Over travel safety provisions.
• Facility of Compression, Shear, Brinell & Bending test with extra accessories.
• Load stabilizer (Optional) is an extra attachment used to maintain a desired load constant at specific deflection enabling measuring it easily & accurately.
• We can also supply machines for Helical compression springs & Disc springs.
• Various Models - Capacities from 100 kN to 500 kN are available
• Analogue, Digital & Computerized versions are available.
• Loading accuracy well within ±1%, conform to IS:1828 / BS:1610.

DIGITAL, HAND OPERATED, COIL SPRING TESTING CHINES ( Model : STM )

• The machine is table mounted, digital & hand operated.
• Load measurement by load cell & displacement by rotary encoder.
• LCD display on DAS panel for Load & Displacement.
• Standard load resolution is with 10,000 counts. Finer resolution (Optional) with 20,000 counts can also be offered at extra cost. Standard displacement resolution is 0.01 mm.

• Vertical day light is 300 mm.
• Tension Shackles & Compression plates are provided for Tension & Compression springs.
• It is possible to use a number of load cells, say two or three, to cover much wider range of load, to suit the application. Cost of one load cell is included in the price, but additional load cell will be at extra cost.
• Various Models - Capacities from 100 N to 2000 N are available.
• Loading accuracy well within ±1%, conform to IS:1828 / BS:1610.

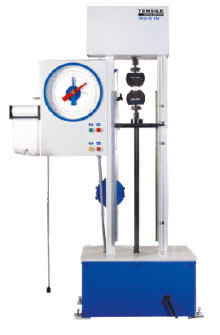

ANALOGUE - TENSILE TESTING MACHINES ( Model : TKG )

• Variety of tests like Tension, Compression, Cross breaking / Bending, Shear, Linear Bonding / Gripping / Peeling strength of adhesives& tapes, etc are conducted.
• Suitable for testing a wide range of materials like rubber, wood, plywood, plastic, rexins, ceramics, teflon, cardboard, latex, composites, ferrous metals, non-ferrous metals, etc of various forms like round, flat, thread, wires, dumbells, fabric, belts, strips, ropes, etc.

• Wide range of Grips, Attachments & Special fixtures are available to suit variety of material and shapes.
• Facility of Compression, Shear, Brinell & Bending test with extra accessories.
• Elongation scale with least count 1 mm.
• Three measuring ranges for accurate testing.
• A number of straining speeds are available for proper selection.
• Machine with AC or DC drive motor is available.
• Various Models - Capacities from 200 N to 50 kN are available.
• Loading accuracy well within ±1%, conform to IS:1828 / BS:1610.
• Hand operated cutting press with different sizes dies are available for cutting dumbbell shape specimens of rubber, leather, etc.

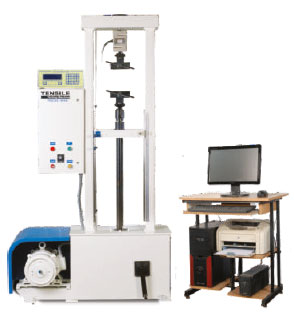

COMPUTERIZED - TENSILE TESTING MACHINES ( Model : TKG-EC )

• Latest Windows based, Users friendly, Accurate, Menu driven software.
• Fully automatic, on screen calculations based on the delivered data.
• Automatic Data capture, storage & graphic display.
• Recording, storage & retrieval of results & details.
• Build in facility for printing of test results and the graph.

• Load measurement by load cell. Over Load & Over travel safety.
• On line display of Load, Elongation & Graph.
• Tare load & reset elongation facilities available.
• Selectable units like N, kN, kgf, lbf, inch, mm, etc.
• Loading accuracy well within ±1%, conform to IS:1828 / BS:1610.
• On line display of Load, Elongation & Graph.
• Tare load & reset elongation facilities available.
• Selectable units like N, kN, kgf, lbf, inch, mm, etc.
• Fully automatic on screen calculations like UTS, YS, Proof stress, etc.
• Electronic Extensometer (Optional) is available for proof stress evaluation.
• It is possible to use a number of load cells, say two or three, to cover much wider range of load, to suit the application. Cost of one load cell is included in the price, but additional load cell will be at extra cost.
• Standard load resolution is with 10,000 counts. Finer resolution (Optional) with 20,000 counts can also be offered at extra cost.
• Standard displacement resolution is 0.1 mm.
• Types of tests, testing materials, grips, attachments, fixtures, straining speed as like Analogue version, Model : TKG.
• Various Models- Capacities from 200 N to 50 kN are available
• Loading accuracy well within ±1%, conform to IS:1828 / BS:1610.

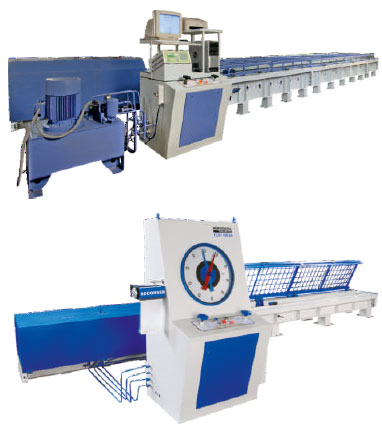

COMPUTERSIED & ANALOGUE VERSIONS - HORIZONTAL CHAIN & ROPE TESTING MACHINES ( Models : FCR, FCR-E, FCR-EC )

• Machines are designed to test chains, ropes & any long specimens for proof test or destructive tensile test.
• High loading accuracy & infinitely variable straining speeds to suit a wide range of materials.

• Robust loading frame, Simple controls & easy to operate.
• Adequate safety devices for safe operation.
• Analogue models with large dial & load measurement by pendulum dynamometer principle.
• Digital / Computerized models are also available where load
  Vs elongation is in digital display & printout of results can be taken.
• Both the ends, where the grips & fixtures (Optional) are fixed are of fork & pin type arrangement.
• Special Accessories like - Extra Bed length, Extra Ram stroke, Various special grips / attachments / fixtures as per sizes / shapes of specimens, Load-stabilizer (at extra cost) can be provided to suit special application.
• Various Models - Capacities from 100 kN to 3000 kN are available.
• Loading accuracy well within ±1% from 5% to 100% of machine
  capacity, conform to IS:1828 / BS:1610.

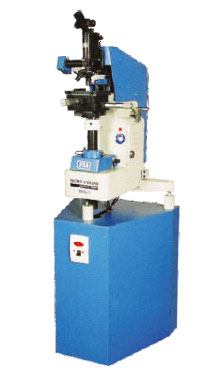

MICRO VICKERS HARDNESS TESTING MACHINES
( Model : FMV-1 )

• Suitable for finish components like thin sheets, fine wires, etc. Watch parts like springs, pivot bearings, gears, cutting edge of Razor blades, drills, file teeth, etc. Metallic foils, surgical needles, pen points & so on.
• To determine hardness on - surface coatings (like electroplating, etc.), extremely thin case hardened parts, anodized castings of alluminium, shot blasted or rolled faces, etc.

• A range of test loads can be used to suit particular application. Test loads from 10 grams to 1000 grams.
• Magnifications - 125X, 250X & 625X available.
• X-Y stage is provided with least count of 0.01mm, which can move the job as per the requirements.
• A precision Diamond Indentor (136° Pyramid) is used to make sharp indentations on the specimens / samples.
• Maximum Test height x Throat : 115 x 70 mm.
• Load accuracy well within ± 1% of nominal load value.
• Machine conform to IS:1754
• Extra (Optional) accessories like - Knoop Indentor, Knoop test
  block, Precision vice, Thin specimen holding device, V-shape anvil,
  Vertical & Horizontal fine specimen holding device, Rotary table,
  etc are available.

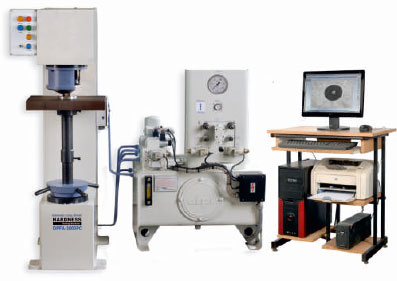

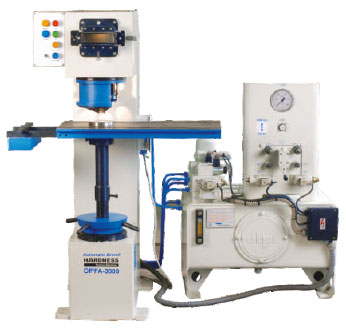

AUTOMATIC OPTICAL BRINELL HARDNESS TESTING MACHINES ( Model : OPFA-3000 )

• The machine has a robust, C-type load frame, designed for production testing of cast or forged components like leaf springs, cam shafts, etc. for Brinell Hardness value. This machine is suitable for foundries, engineering industry on production line.

• Since most of the operations are fast and automatic, the test speed is high with less operator fatigue.
• The cycle time (except job loading / unloading) is about 12 seconds per test.
• Load stages-750kgf & 3000kgf (Optional loads-500kgf & / or 1000kgf).
• Optical measuring equipment with 14 X magnification.
• Machine Test height x Throat is 365 x 200mm.
• Size of supporting table with fixing slots – 260 x 400mm.
• Load capacity of table (which can withstand) – 200kg.
• Job loading / unloading, on/off the machine table, pushing cycle start & de-clamp buttons, impression measurement are the only manual operations & rest all are automatic.
• A push button is pressed for cycle start & hydraulic operations. After cycle time, impression is visible on screen, which (Diameter) is to be measured with the help of microscope of least count of 0.01mm
• Heavy duty Model : OPFA-3000 (SPL) with height x throat of 650 x 350mm, heavy
  supporting table of size 600 x 600mm with loading capacity of 500kg can also be offered.
• The machine accuracies conform to IS:2281-2005 & BS:240.

COMPUTERISED - AUTOMATIC OPTICAL BRINELL HARDNESS TESTING MACHINES ( Model : OPFA-3000-PC )

• The machine has a robust, C-type load frame, designed for production testing of cast or forged components. This machine is suitable for foundries, engineering industries on production line.
• Since most of the operations are fast & automatic, the test speed is high with less operator fatigue.

• The cycle time (except job loading / unloading) is about 12 seconds per test.
• Machine Test height x Throat is 365 x 200mm.
• Size of support table with fixing slots – 260 x 400mm.
• Load capacity of table – 200kg
• loading / unloading, on / off the machine table, pushing cycle start
  & de-clamp buttons, impression measurement are the only manual
  operations & rest all are automatic.
• Fully computerized system for indentation measurement & display
• Window based software system.
• Accurate measurement of Brinell hardness through matched Optics, CCD camera, Hardware & Software using advanced image processing technology.
• A push button is pressed for cycle start & hydraulic operations. After cycle time & on removal of load the optics will transfer the image of indentation to CCD. The image is further digitalized and processed by PC for measurement. The diameter of the image can be measured automatically / manually to give Brinell hardness value. Results printout can be taken.
• The optical device magnification is 16 X & least count of measurement is 0.01mm.
• Two modes of measurement – Manual & Auto.
• In Auto mode, the image is scanned for measurement & hardness is displayed automatically.
• Verification facility is provided for clear indication of measured impression by encircling the same.
• Windowing facility is provided which encircles the blurt images for better accuracies.
• Macro & Micro adjustment facilities are provided in manual mode for fast & accurate encircling of the image to be measured.
• Batch testing facility is provided.
• Statistical Analysis report can be generated.
• Calibration mode is provided with password protection.
• Heavy duty Model : OPFA-3000-PC (SPL) with
  height x throat of 650 x 350mm, heavy supporting table of size 600 x 600mm with loading capacity of 500kg can also be offered.
• 600 x 600mm with loading capacity of 500kg can also be offered.

DEEP THROAT BRINELL HARDNESS TESTING MACHINES
WITH FIXED TABLE
( Model : WOM TYPE )

• The Semi Automatic Brinell Hardness Tester is an inline Production machine highly suitable for batch testing of heavy jobs.
• The machine has a C-Type heavy & big loading frame with a deep throat of 400mm & Test height of 900mm or 600mm.

• This machine is more suitable for testing hardness of heavy jobs.
• Load stage of 750kgf & 3000kgf (Optional loads of 500kgf & / or 1000kgf).
• The indentation measurement is with Brinell microscope of 25X magnification & least count of assuring device 0.01mm
• The machine is provided with a large & fixed table size : 1200mm wide x 600mm depth. Load capacity of table is from 1200kg to 1500kg.
• Ram stroke of 300mm with upward speed of 930mm/min. & downward (loading) speed of 440mm/min.
• Test block of desired hardness range are available (Optional).
• Special test fixtures for odd jobs/ production testing (Optional).
• Computerised Brinell Impression measurement system (BIMS system) (Optional).

DEEP THROAT BRINELL HARDNESS TESTING MACHINES
WITH MOVABLE TABLE
( Model : TEXMACO TYPE )

• The semi automatic Brinell hardness tester is an inline production machine highly suitable for batch testing of heavy jobs.
• The machine has a C-Type load frame with a deep throat of 400 mm & vertical clearance of 600 mm.

• This machine is more suitable for testing hardness of heavy jobs in the form of wheels, discs, plates, cyclinder blocks, etc.
• Load stages of 750 kgf & 3000kgf (Optional loads of 500kgf & / or 1000 kgf).
• The indentation measurement is with Brinell microscope of 25X magnification & Least count of asuring device 0.01 mm.
• The machine is provided with a movable table size : 1100 x 600 mm with rollers for moving the job in both XX (1000 mm) & YY (200 mm) directions. Load capacity of table is 700 kg.
• Ram stroke of 300 mm with upward speed of 1200 mm/min & downward (loading) speed of 600 mm/min.
• Test blocks of desired hardness range are available (Optional).
• Special test fixtures for odd jobs / production testing (Optional).
• Computerised Brinell Impression measurement system (BIMS System) (Optional).
• Accuracy conform to IS:2281-2005 & BS:240.

BEND & RE-BEND TESTING MACHINES
( Models : FBR-100 kN & FBR-150 kN )

• To conduct testing of carbon steel bars upto 42 mm diameter for reinforcement of concrete.
• C- frame design & hydraulically operated.
• Maximum load capacities available are 100 kN & 150 kN.
• Dia. of support rollers is 100mm & distance between support rollers is 400mm.

• A common attachment for testing bend re-bend & 180° is supplied with the machine.
• Different sizes of formers (tools) are available from diameter 6 to 400mm.
• Suitable re-bending tools supplied which will be incorporated in the machine.
• Hinged grilled safety doors at front is provided for safety.
• Accuracy conforming to BS:4449, IS:1786 & ASTM:A 615.

DROP WEIGHT IMPACT TESTING MACHINES
( Model : FDW-1650 J )

• To conduct fracture toughness test as per ASTM-E-208.
• Energies are 350, 400, 450, 550, 800, 1100, 1350, 1650 J.
• Drop weight is 136 kg & height of fall is 1237mm (max.) adjustable to get the desired energies. Striker tip radius is 25.4mm and hardness is 50 HRC (min.).

• Striker lifting arrangement is moterised driven by electrical motor & speed of lifting is 0.9 mtr/min. (appx.).

MECHANICAL EXTENSOMETER
( Model : FXT - 3 )

• It is an attachment to Universal Testing Machine and Tensile Testing Machines, used to find out the proof stress at the required elongation.
• It measures the elongation of a test piece on load for the

• Least count of measurement 0.01 mm and maximum elongation measured upto 3 mm.
• Adjustable gauge length from 30 mm to 120 mm.
• Round specimen from 1 mm to 20 mm dia. & flat specimen from 1mm to 20 mm thickness can be accommodated.
